CAS.192198-85-9 TPBi

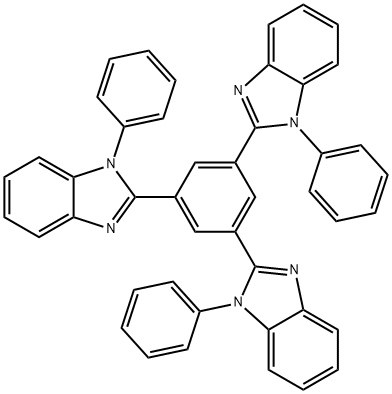

1,3,5-Tris(1-phenyl-1H-benzimidazol-2-yl)benzene

Description

1,3,5-Tris(1-phenyl-1H-benzimidazol-2-yl)benzene Basic information

Product Name:	1,3,5-Tris(1-phenyl-1H-benzimidazol-2-yl)benzene
Synonyms:	1,3,5-TRIS(1-PHENYL-2-BENZIMIDAZOLYL)BENZENE;TBPI;1,3,5-Tris(1-phenyl-1H-benzimidazol-2-yl)benzene;1,3,5-Tris(N-phenylbenzimidazol-2-yl)benzene;2,2',2''-(1,3,5-Benzenetriyl)tris[1-phenyl-1H-benzimidazole];TPBi;2,2',2" -(1,3,5-Benzinetriyl)-tris(1-phenyl-1-H-benzimidazole);1,3,5-Tri(1-phenyl-1H-benzo[d]imidazol-2-yl)phenyl
CAS:	192198-85-9
MF:	C45H30N6
MW:	654.76
EINECS:	1312995-182-4
Product Categories:	OLED;oled materials
Mol File:	192198-85-9.mol

1,3,5-Tris(1-phenyl-1H-benzimidazol-2-yl)benzene Chemical Properties

Melting point	272-277°C
density	1.26
storage temp.	Keep in dark place,Sealed in dry,Room Temperature
solubility	DMSO (Slightly), Methanol (Slightly)
pka	4.25±0.10(Predicted)
form	powder
λmax	302nm(CH2Cl2)(lit.)
InChIKey	GEQBRULPNIVQPP-UHFFFAOYSA-N
SMILES	C1(C2N(C3=CC=CC=C3)C3=CC=CC=C3N=2)=CC(C2N(C3=CC=CC=C3)C3=CC=CC=C3N=2)=CC(C2N(C3=CC=CC=C3)C3=CC=CC=C3N=2)=C1
Absorption	λmax?305 nm?in THF
color	White Powder

Safety Information

MSDS Information

1,3,5-Tris(1-phenyl-1H-benzimidazol-2-yl)benzene Usage And Synthesis

Applications	2,2',2"-(1,3,5-Benzinetriyl)-tris(1-phenyl-1-H-benzimidazole), TPBi, being electron deficient, is normally used as electron transport layer material in optoelectronic devices. Having a low LUMO energy level (2.7 eV), TPBi is also used as host material for both fluorescent and phosphorescent light emitting systems. In some cases, TPBI is used to replace CBP (HBL)/Alq3 (ETL) to simplify the device structure for its excellent electron transporting and also its hole blocking abilities with very deep HOMO energy level (HOMO = 6.2/6.7 eV). It has also been reported that TPBi could be used as electron injection layer material between Alq3 (ETL) and Cs2O3/Al (electrode). It suggested that TPBI thin layer at the Alq3/Cs2O3 interface facilitates the electron injection and is also involved with hole-blocking and exciton confinement.
Description	2,2',2''-(1,3,5-Benzinetriyl)-tris(1-phenyl-1-H-benzimidazole), TPBi, being electron deficient, is normally used as electron transport layer material in optoelectronic devices.?Having a low LUMO energy level (2.7 eV), TPBi is also used as host material for both fluorescent and phosphorescent light emitting systems.
Uses	Used in OLED′s devices as electron transport and exciton blocking materials.
